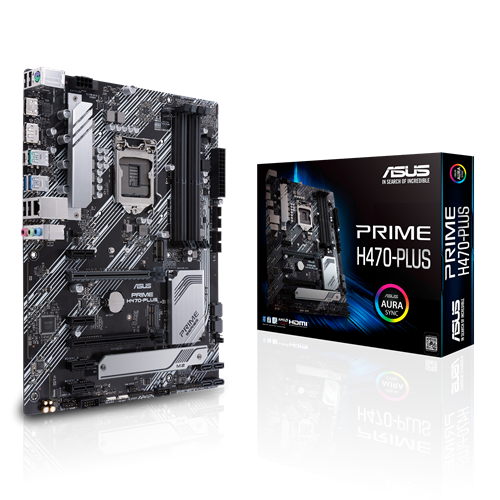

ASUS PRIME-H470-PLUS Intel® H470 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, 1Gb Ethernet, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 3 support, and Aura Sync RGB Lighting

16,850.00 11,019.00

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 6+1+1 power stages, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C® and Thunderbolt™ 3 support
Add to Wishlist
Add to Wishlist

Included Warranty

3 Years
We have provided 3 Years Warranty on this product.

Categories: ,

Description

CPU

Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H470

Memory

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H470 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® H470 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

LAN

Realtek® RTL8111H

Wireless Data Network

M.2 slot only (Key E) (Support CNVI & PCIe interface)*
*Wi-Fi module is sold separately.

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *
– Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Rear USB Port ( Total 8  )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port ( Total 7  )
4 x USB 3.2 Gen 1 port(s)
3 x USB 2.0 port(s)

Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
– Aluminum heatsink design
AURA Sync
– Standard RGB header
– Addressable Gen 2 RGB header

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 *2
3 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
1 xM.2 Key E screw package(s)
1 x M.2 Rubber Package(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
