Specifications

• 80 PLUS® Certification
  Platinum
• Modular cables
  Fully modular

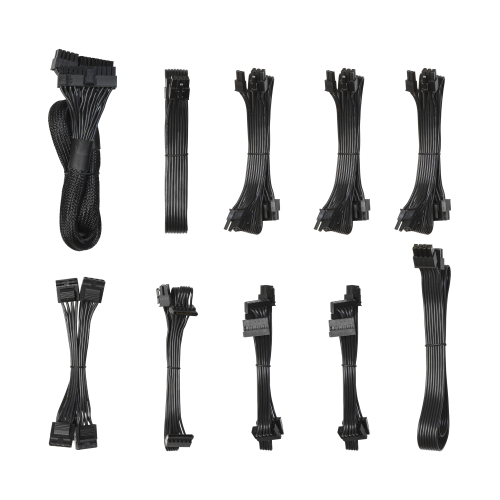

• Cable type
  Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire

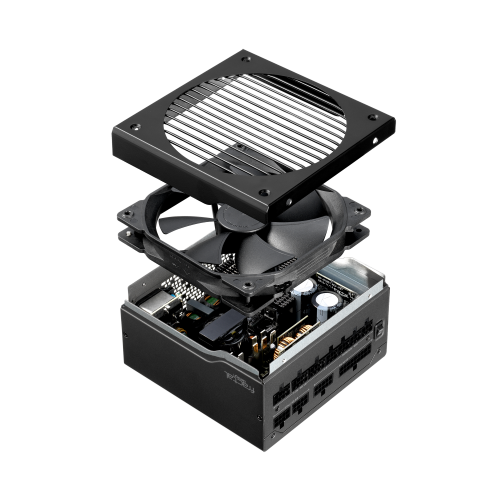

• Fan type
  Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
• Maximum operating temperature at full load
  50° C
• Semi-passive operation
  Yes, user selectable (Zero RPM)
• Sleep State Compliance
  C6/C7
• Warranty
  10 years
• Capacitors
  Japanese
• Protection features
  Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
• Approvals & Certifications
  CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
• Life expectancy (MTBF) at max output load
  100,000 hours
• Input voltage
  100-240V AC
• Input frequency
  50-60 Hz
• Input current
  10A/5A
• Number of 12V rails
  1
• PSU specification compliance
  ATX12V 2.4 / EPS12V 2.92
• Standby efficiency
  ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
• Unit measurements
  150 x 150 x 86 mm
• Unit weight (unit only)
  1.665 kg

Connectors

• ATX 24-pin
  1
• ATX12V 4+4 pin / EPS12V 8-pin
  2
• PCIe 6+2 pin
  6
• SATA
  10
• Peripheral
  4

Cable configuration (length between connectors)

• ATX 24-pin
  600
• ATX12V 4+4 pin
  700
• EPS12V 8-pin
  600
• PCIe 6+2 pin
  550+120
• SATA
  400+120+120+120, 650+120
• Peripheral
  400+120+120+120

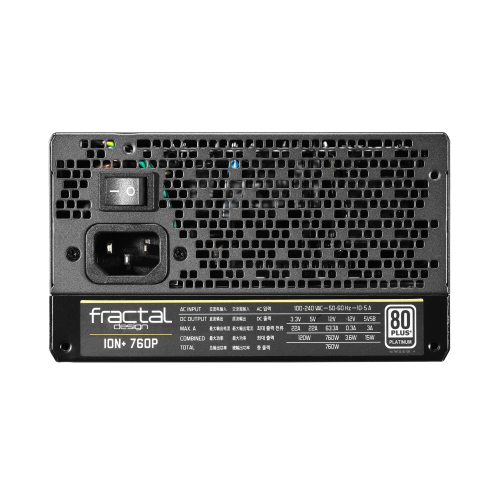

DC output

• 3.3 V
  22A
• 5 V
  22A
• 3.3 V and 5 V combined
  120W
• 12 V
  63.3A
• -12 V
  0.3A
• 5 V Standby (+5 Vsb)
  3A
• Total Power
  760W

Other

• Package content
  Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
• Package dimensions (W x H x D)
  325 x 110 x 210 mm
• Package weight
  2.975 kg
• EAN
  7340172701934
• UPC
  843276101930
• Product code
  FD-PSU-IONP-760P-BK
