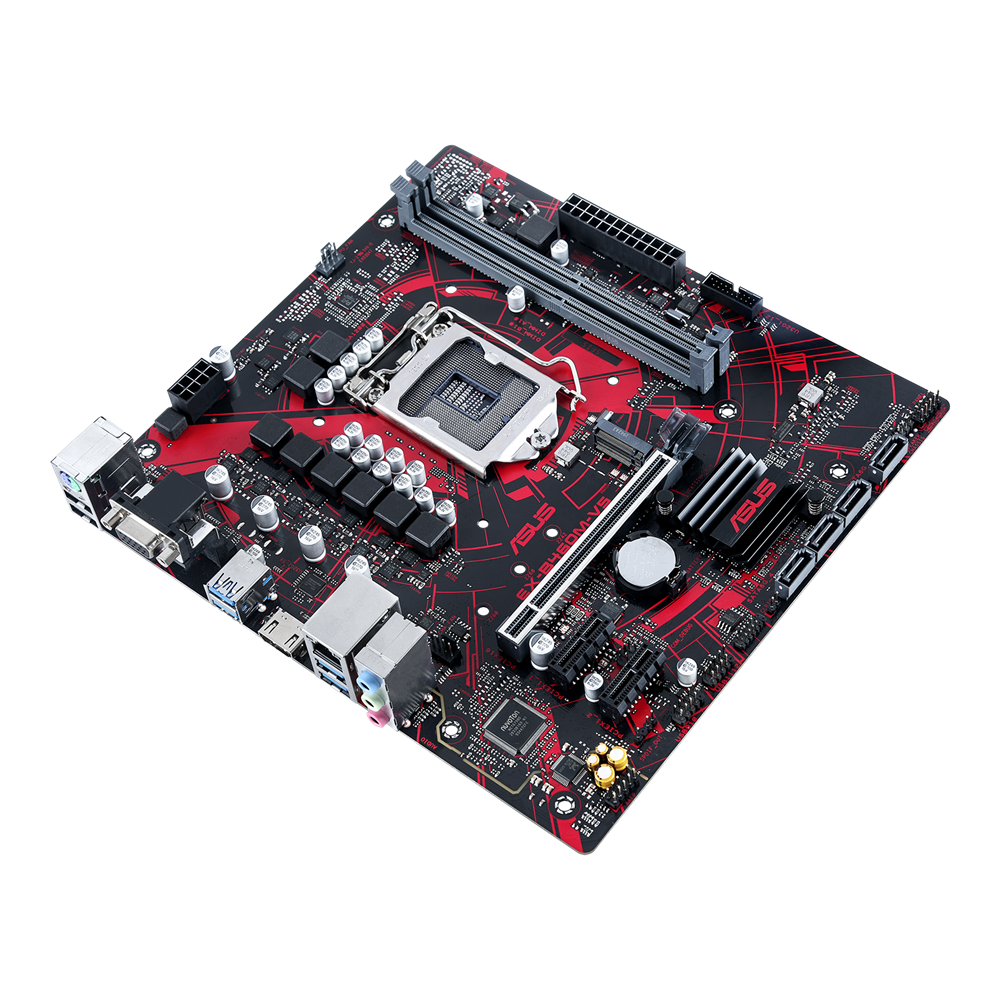

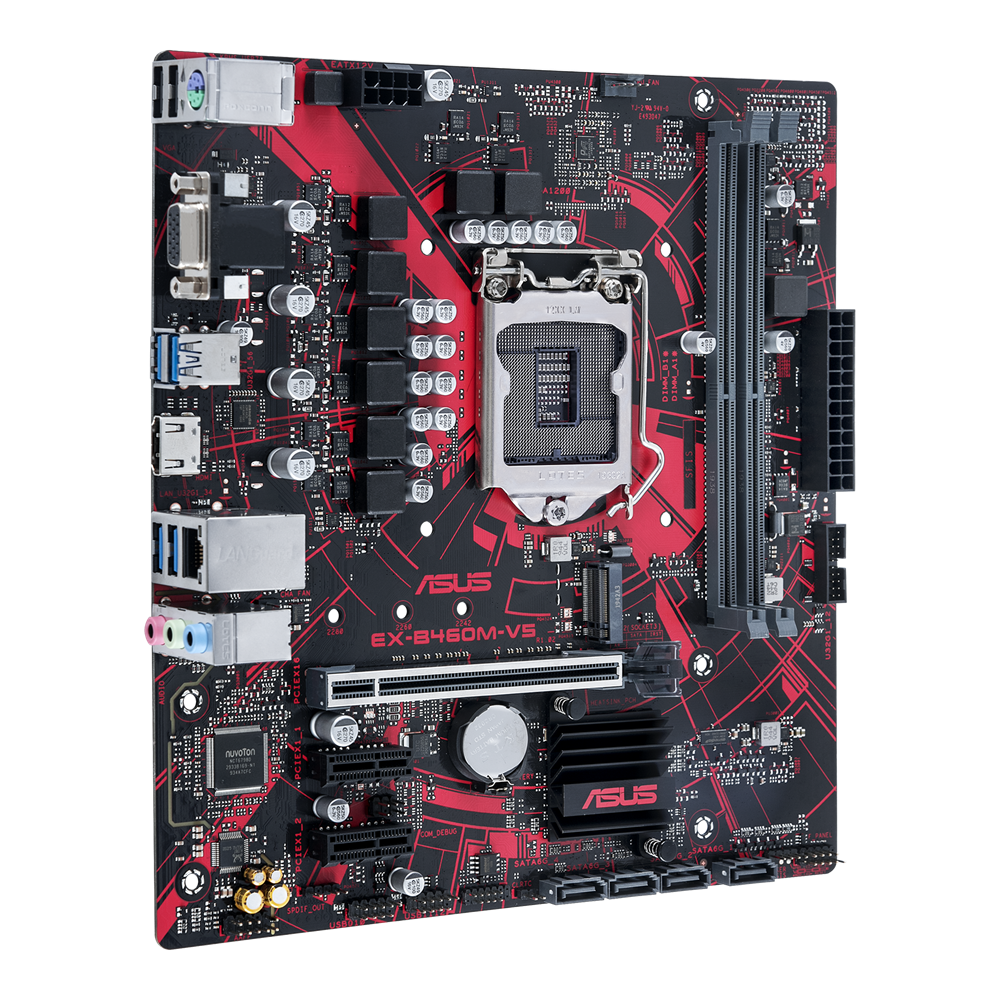

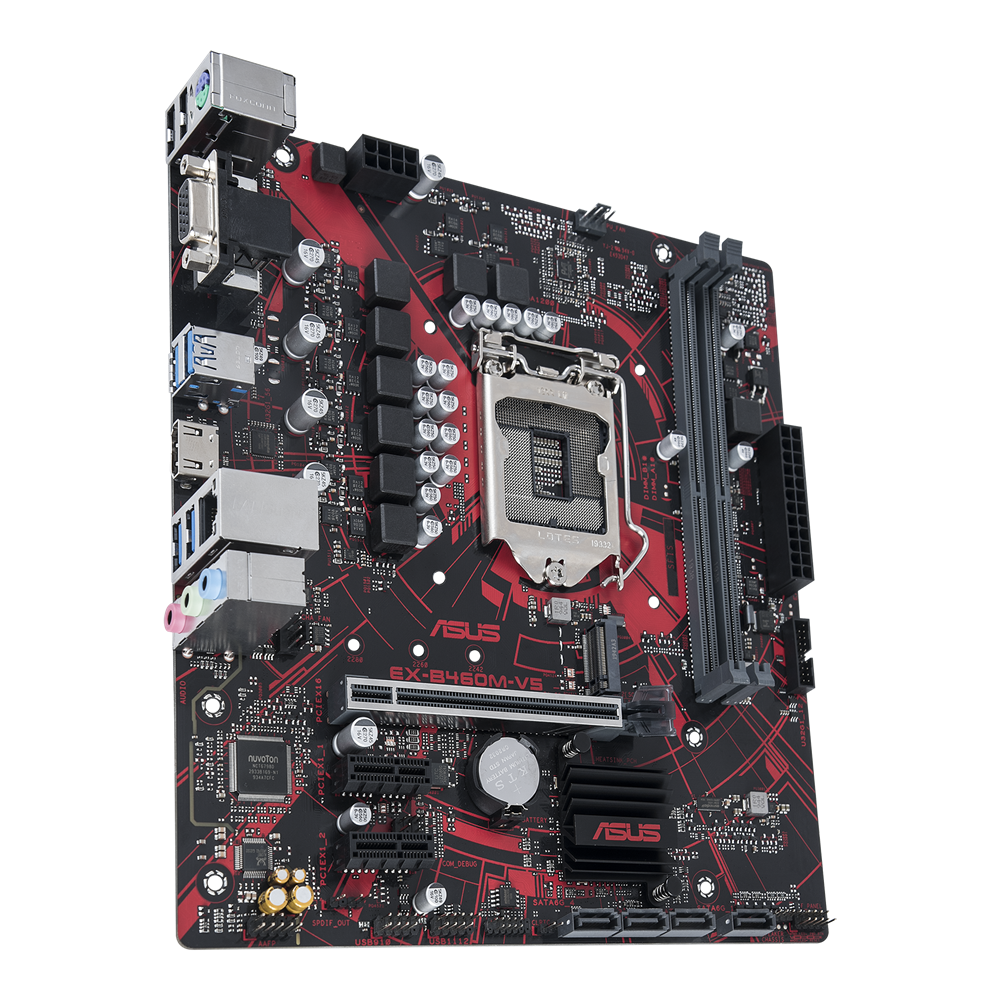

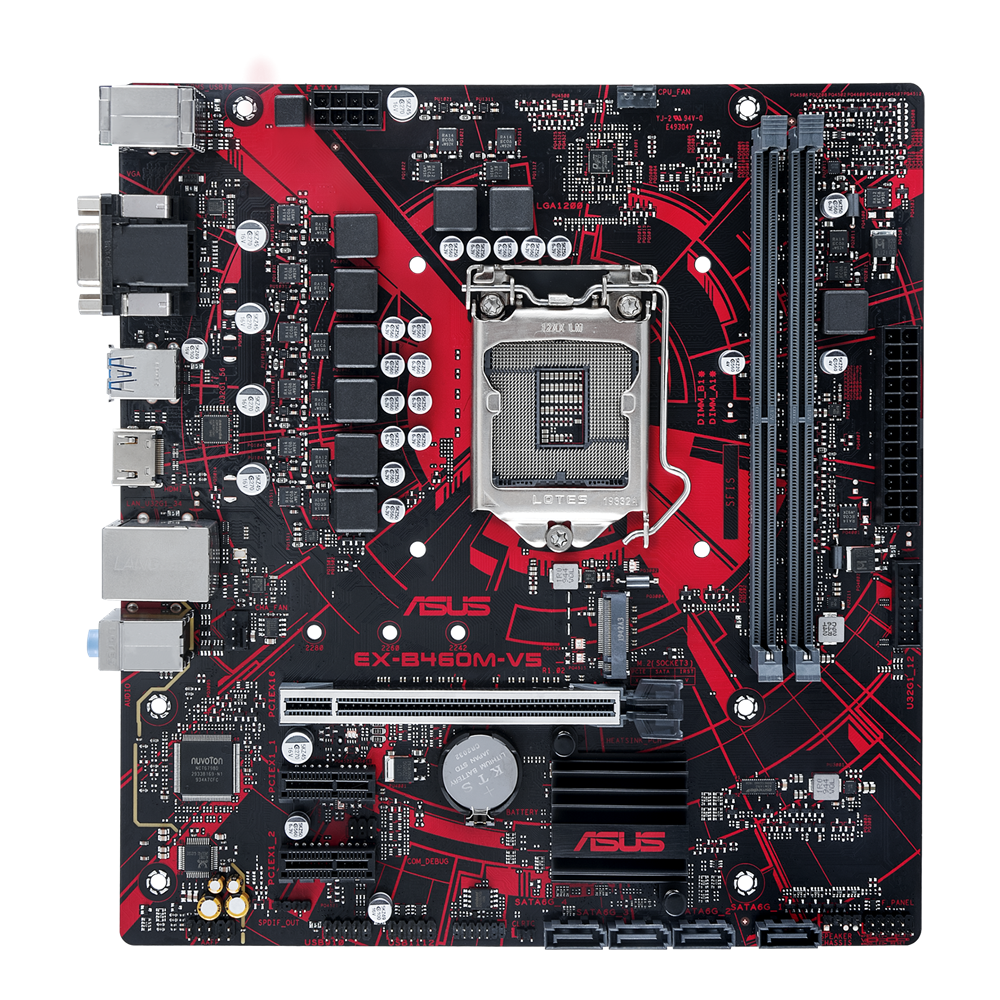

EX-B460M-V5 Intel B460 LGA 1200 mATX motherboard feature with luminous anti-moisture coating, SafeSlot Core+, USBGuard, LANGuard, DDR4 2933MHz, HDMI, D-Sub, SATA 6Gbps and USB 3.2 Gen 1, and 8-pin power connector

8,689.00

  • Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
  • Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
  • Non-stop gaming: ASUS Beyond VR ready and Epic audio
  • Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more

100% Genuine

All India Shipping

No Transation Fee

Out of stock

Add to Wishlist
Add to Wishlist
Categories ,

Share :

Description

CPU

Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 125 W
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B460

Memory

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/D-Sub ports
– Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 30  Hz
– Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz

Expansion Slots

Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16
Intel® B460 Chipset
2 x PCIe 3.0 x1

Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),

LAN

Realtek® RTL8111H
ASUS LANGuard

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC *1

USB Ports

Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

Special Features

ASUS 5X Protection III :
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS SafeSlot Core+ – Prevent graphics card damage
– ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
– Anti-moisture coating – Outstanding protection against moisture and corrosion
– USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
– ASUS iCafe Labs Certified – Top games and 100+ peripherals tested

Operating System Support

Windows® 10 64-bit

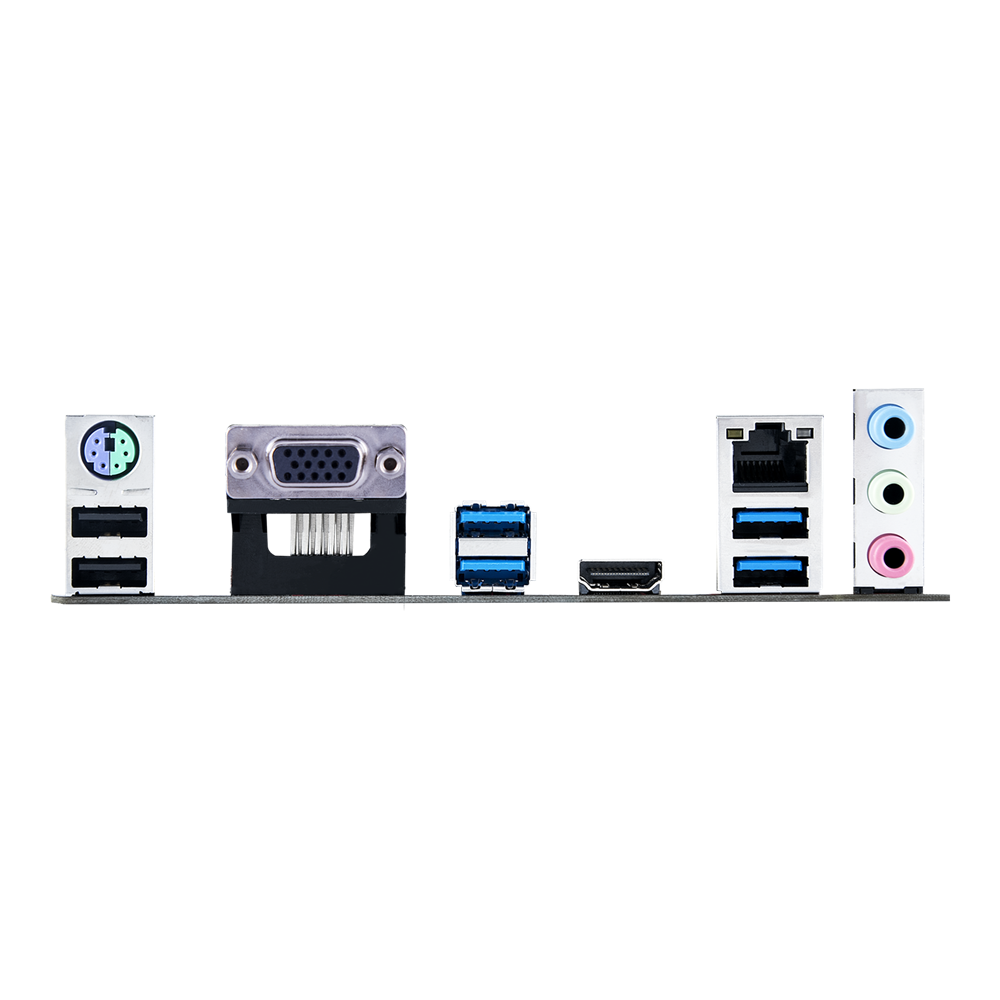

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor
8.9  inch x 8.3  inch ( 22.6  cm x 21.1  cm )
