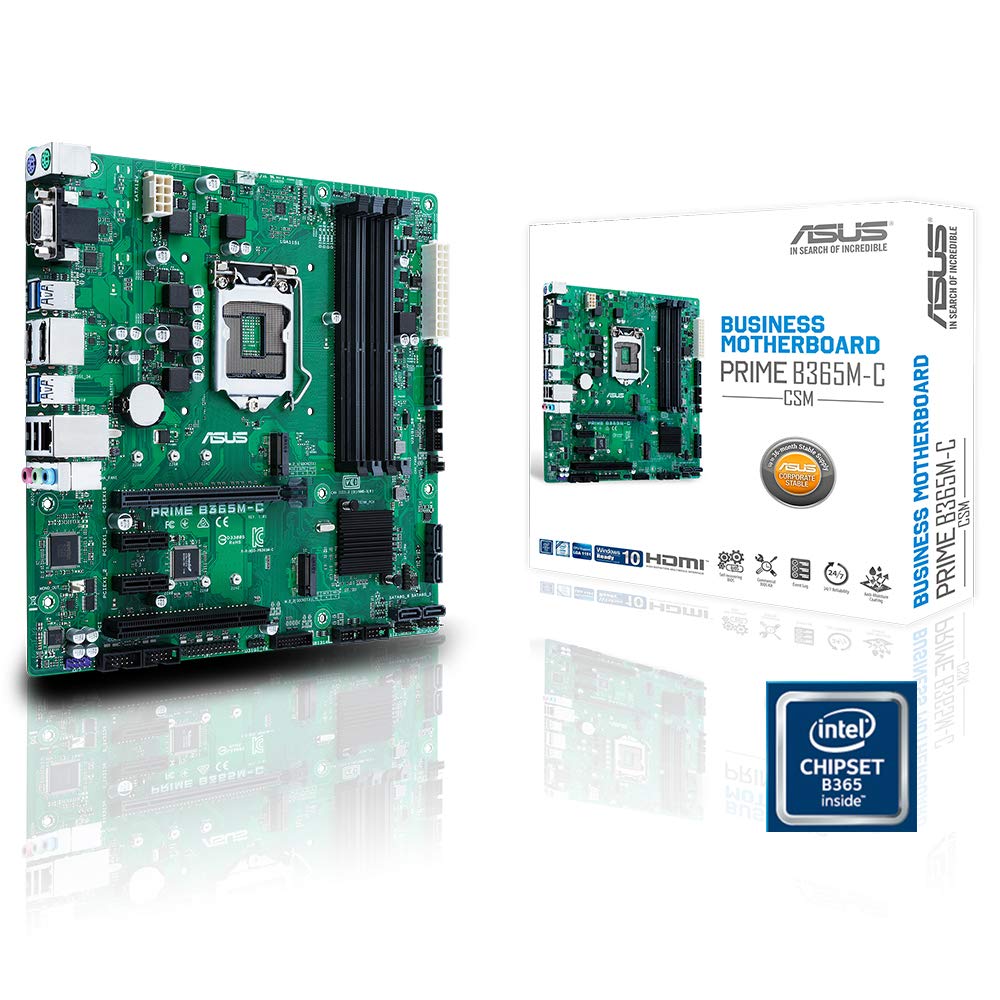

PRIME B365M-C/CSM OverviewSpecificationsGallerySUPPORTWhere To Buy PRIME B365M-C/CSM Micro-ATX B365 business motherboard with enhanced security, reliability and manageability

7,469.00

  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • Dedicated LPC header and debug card with LCD display for faster troubleshooting
  • Event log for capturing and managing detailed system information
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center software to make IT endpoint management easier

100% Genuine

All India Shipping

No Transation Fee

Out of stock

Add to Wishlist
Add to Wishlist
Categories ,

Share :

Description

  • CPU
    Intel® for 8th Generation Core Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors 1 year / 2 years
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B365
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory 1 year / 2 years
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support 1 year / 2 years
    Multi-VGA output support : HDMI/DisplayPort /D-Sub ports 1 year / 2 years
    – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz1 year / 2 years
    – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 1 year / 2 years
    2 x PCIe 3.0/2.0 x1 1 year / 2 years
    1 x PCI 1 year / 2 years
  • Storage
    Intel® B365 Chipset : 1 year / 2 years
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 year / 2 years
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)1 year / 2 years
    Support Raid 0, 1, 5
    Intel® B365 Chipset : 1 year / 2 years
    6 x SATA 6Gb/s port(s), 1 year / 2 years
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *1
    – Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports
    Intel® B365 Chipset : 1 year / 2 years
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
    Intel® B365 Chipset : 1 year / 2 years
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  • Special Features
    Bespoke Motherboard Design & Business Focused Features :
    – ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
    – ASUS Event Log: Record activities of system and provides information in BIOS
    – ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
    – Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
    – 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
    Easy Assembly Design:
    – Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
    – Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
    Digi+VRM
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    2 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 Type-A 1 year / 2 years
    2 x USB 2.0 1 year / 2 years
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x MONO out header *2
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    1 x LPT header
    2 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)1 year / 2 years
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)1 year / 2 years
    1 x Internal speaker connector(s)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)1 year / 2 years
    1 x 14-1 pin TPM connector
    1 x LPC Debug header
  • Accessories
    User’s manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS Self-Recovering BIOS, ASUS Event log, ASUS Commercial Kit
  • Manageability
    WOL, PXE
  • Support Disc
    Watch dog timer, Drivers, ASUS Commercial Kit
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    uATX Form Factor 1 year / 2 years
    24.4 cm x 24.4 cm (9.6 x 9.6 )
