Pro WS W480 ACE

-32%

Pro WS W480 ACE

₹22,859.00

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they’re also an efficient and cost-effective option for IT administrators.

Pro WS W480-ACE features an onboard RTL8117 management LAN port that gives IT administrators reliable remote hardware-level access to the workstation in the event of a system crash or when no OS is installed. With the ability to manage BIOS settings and perform updates, hardware resets and even OS installations, hardware-level access on Pro WS W480-ACE makes IT management of your business systems easier and more efficient.

100% Genuine

All India Shipping

No Transation Fee

Out of stock

Add to Wishlist
Add to Wishlist
Categories ,

Share :

Description

CPU

Intel® Socket 1200 for 10th Gen Intel® Xeon® Core™ , Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® W480

Memory

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
ECC Memory (ECC mode) support varies by CPU.

Thunderbolt

2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards´ resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12  Thunderbolt devices
Up to 5V/3A, 15W charging support

Graphic

Integrated Graphics Processor
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel® W480 Chipset
1 x PCIe 3.0 x16 (x4 mode) *2
2 x PCIe 3.0 x1

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® W480 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

LAN

Intel® I225-LM 2.5Gb Ethernet
Realtek® RTL8117

Audio

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
– High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
– Audio Cover
– Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C®)
Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7  )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)

Operating System Support

Windows® 10 64-bit

Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
– TPU
– EPU
– Digi+ VRM
– EZ update
– Fan Xpert 4
– Turbo app
IT Management software supported
– ASUS Control Center Express(ACCE)
AI Charger
ASUS Turbo LAN
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features

ASUS 5X PROTECTION III
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core+
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED
– ASUS Q-Shield
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS EZ DIY
– Procool II
– SafeSlot
Out-of-band Management
– BIOS Update Indicator LED
– LAN Initialization Indicator LED

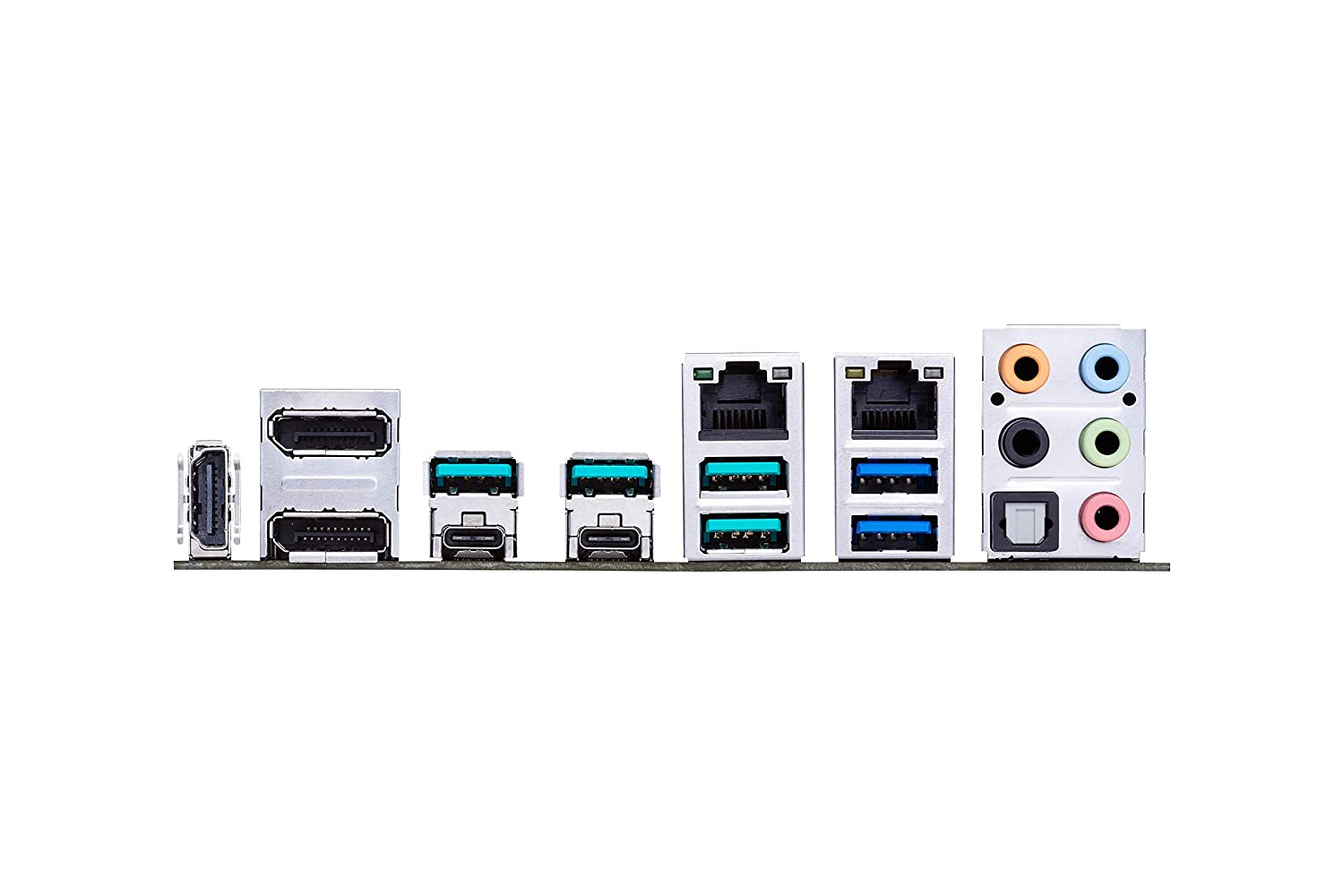

Back I/O Ports

2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (RJ45) port(s)
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header

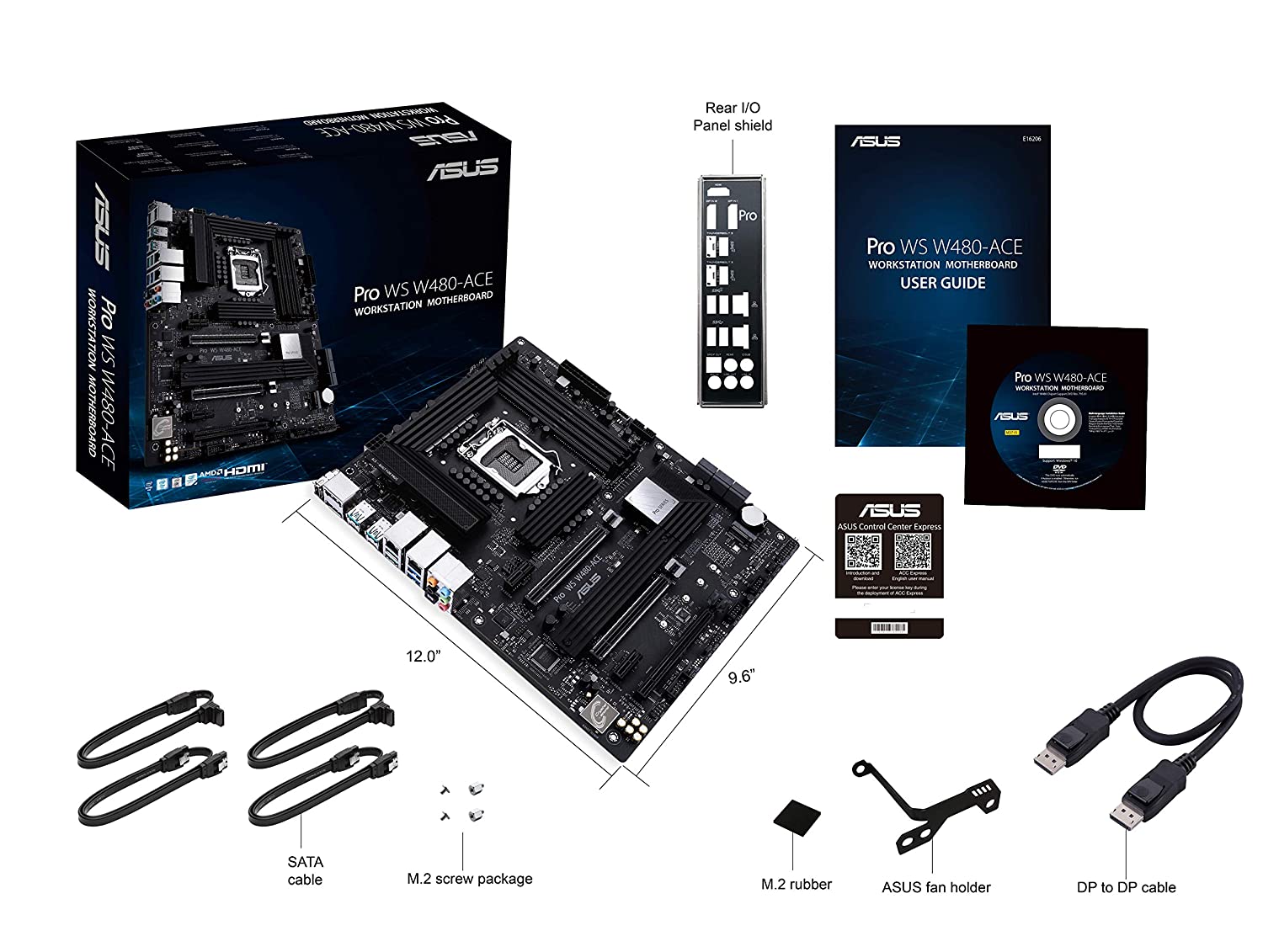

Accessories

1 x ACC Express Activation Key Card
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
User manual
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
